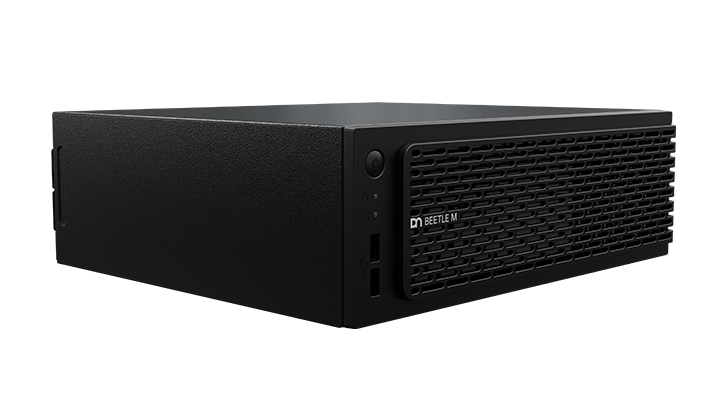

DN Series® BEETLE M2110 — Modular POS System

DN Series® BEETLE M2110 — Modular POS System

The DN Series® BEETLE M2110 is a modular POS system for retail, powered by Intel® Alder Lake PS and Raptor Lake PS processors. It delivers scalable performance, flexible configuration, and seamless integration into existing IT environments. Designed for continuous operation, it supports efficient and reliable checkout experiences in demanding retail settings.

DN Series® BEETLE M2110 POS

Features & Benefits

Application

• Front-end POS system

• Store back office PC

• SCO and Kiosk solution

• Information/ service-terminal

Incomparable Manageability

• The desktop management agent BEETLEINFO supports remote asset management and remote monitoring.

• Intel Active Management Technology (AMT), a hardware-based technology allows remote management out of band, independent of the state of the operating system

Commitment To the Environment

• Using the latest power-saving Intel processors

• Complying with the strict 80PLUS Gold environmental standard which leads to a constant energy efficiency of at least 87%

• Powering peripheral devices directly from the system

• Utilizing the power-saving functions of the operating system

• Intelligent power management using DDR5 RAM

• Energy-efficient flash memory (M.2 SATA SSDs)

Specifications

Display:

• Width: 310 mm (12.2”)

• Depth (without cable cover): 290 mm (11.4”)

• Depth (with cable cover): 362.5 mm (14.")

• Height 102.1 mm (4.02”)

• Weight: approx. 5kg

Intel Processors:

• Alder Lake PS Celeron 7305L
• Alder Lake PS Core i3-12300HL
• Alder Lake PS Core i5-12500HL
• Alder Lake PS Core i5-12600HL
• Alder Lake PS Core i3-1215UL
• Alder Lake PS Core i5-1235UL
• Alder Lake PS Core i5-1245UL

• Raptor Lake PS U300L
• Raptor Lake PS Core 5-120UL
• Raptor Lake PS Core 3-100HL
• Raptor Lake PS Core 5-120HL
• Raptor Lake PS Core 7-160HL

Main Memory:

• 8GB – 64GB DDR5 RAM

Storage Device

• 2x M.2 SSD / NVMe

Integrated Features /Options

• TPM 2.0

• Intrusion sensor

• Bluetooth / WLAN

• Lint filter

• Cable cover

• Front button on the back side

Onboard Interfaces

• RS232 (switchable 0/5/12V): 2

• USB (2.0/3.0): 2/2

• USB-C (PD 5V/12V + DisplayPort)

• USB-C (PD 5V/24V for printer)

• Ethernet LAN: 1Gbit/s

• Cash drawer

Interface Hub Options

• 2x USB-C (with PD 5V/12V + DisplayPort)

• 1x DisplayPort D++

• 4x USB 3.0 + 2x USB 2.0

• 1x cash drawer RJ12

• 1x Gbit Ethernet LAN RJ45

• 1x Line out / 1x Line in / 1x Mic

• 1x 24V PoweredUSB

• 3x 12V PoweredUSB

• 4x 12V PoweredUSB optional

• 2x RS232 (configurable powered / non-powered) optional

Operating system

• Windows 10 IoT Enterprise LTSC 2021

• DNL1

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
