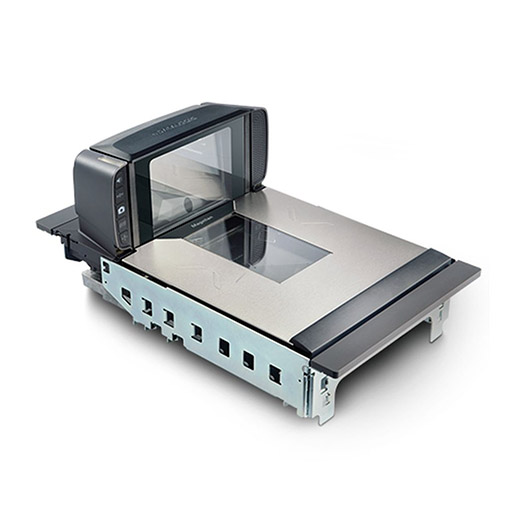

Diebold EL69 Stationary Scanner

EL69

The high-performance 2D multi-plane bioptic EL69 scanner is an imaging technology-based, stationary scanner suitable for use in retail stores with high throughput. The imaging technology provides superior performance in terms of the omnidirectional detection and decoding of linear, 2D and GS1 DatabarTM labels. The power of full imaging technology becomes particularly evident with labels that are hard to read, such as low-contrast or damaged barcodes. The compact, ergonomic design of the EL69 MagellanTM 9300i is identical in its dimensions for the counter cutout to currently available bioptic scanner products on the market. This makes it easy to integrate into existing checkout installations. Its large scanning window and resulting scan area is comparable with bioptic scanners. The EL69 opens new application possibilities, because it offers 1D and 2D bar code recognition from mobile devices. The EL69 MagellanTM 9300i can be optionally-equipped with a 2D customer scanner. This means that customers can scan coupons and loyalty cards on their own. A checkout scale can be optionally installed below the horizontal scan window. When the scale is used in conjunction with optional ScaleSentryTM technology, the system checks on the two main sides of the top platter using an invisible infrared beam to determine if the weighed article is positioned correctly.

Features & Benefits

Specifications

Product Card

Reference Manuals, Firmware and Drivers

Diebold EL69 Stationary Scanner

Features & Benefits

The High-Performance 2D Multi-Plane Bioptic Scanner EL69 Magellan™ 9300i based on image technology is a stationary scanner for retail stores with a high throughput.

The EL69 is characterized by the following features:

  • Suitable for use in self-service, retail stores and wholesale
  • Recognition of all linear and 2D and GS1 DataBar™ barcodes
  • Omni-directional barcode recognition also from smartphone displays
  • Functional design
  • Optional integration of a checkout scale
  • Top Platter scan window with Datalogic Clear™ Glass
  • Integrated EAS-Support for Checkpoint/Nedap
  • User-Friendly
  • Omni-directional barcode recognition also from smartphone displays
  • USB-Port and  MicroSD card reader for service and software administration
  • Image Capture Modus
  • Optional ScaleSentry™ Technology
  • Easy integration into existing checkout installation
  • Optional 2D Customer Service Scanner (CSS)
  • Plug&Play compatibility ProBase UPOS

Specifications

System versions

High-Performance 2D Multi-Plane Image Bioptic Scanner, multi-interface

Additional interface cable alternatives

Power brick / alternative power line cord

Optional 2D customer scanner (Customer Service Scanner)

Optional accessories

Interfaces

Power supply

Environmental conditions

Reading characteristics

Barcode types

Linear 1D Barcodes

2D Barcodes

Approvals

Dimensions (W x H x D in mm)

Dimensions when installed

Weight

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
