Diebold KA21 Cash Drawer

KA21

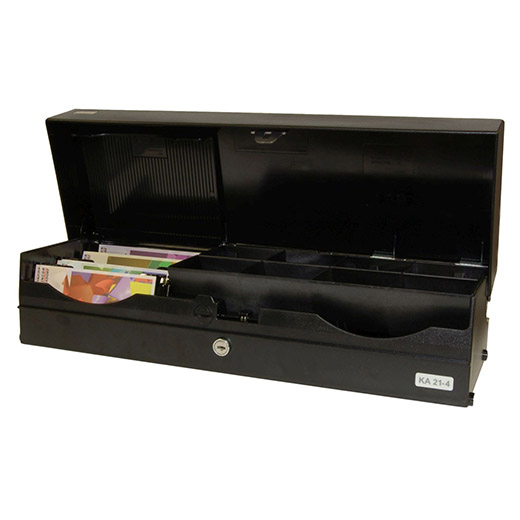

Cassette cash drawer KA21 with Flip-lid / cassette cash drawer, variable banknote compartments and an extensive security concept.

Features & Benefits

Reference manuals, firmware and drivers

Diebold KA21 Cash Drawer

Features & Benefits

Key Features

Countertop cash drawer
Flip-lid
Removable coin tray
Banknote box with variable positioning on right or left side

Highlights

Banknote compartments of variable size
Space for checks, documents, wrapped coins
Opening only under software control if the cassette is on the baseplate
Cassettes can be exchanged, for example when the cashier changes (safe function);
then opening is possible with up to 30 different keyings

Specifications

Capacity

8 coin compartments
4 banknote compartments of adjustable size
1 compartment for checks, documents, wrapped coins

Cash drawer interface

24 V DC (-10% / +10%)

Connection / Cabling

RJ12 for connection to BEETLE POS systems
and POS printers with a cash drawer interface

Dimensions

Depth: 163 mm
Width: 461 mm
Height: 101 mm

Weight

2.7 kg

Option

Flap for banknote box of KA21-5

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
