RETAIL
Self-service solutions can reduce friction during transactions and support order-taking, service, product information, ticket and lottery sales and so much more. The K-two interactive kiosk is designed to quickly, seamlessly assist your consumers at every step of their journey.

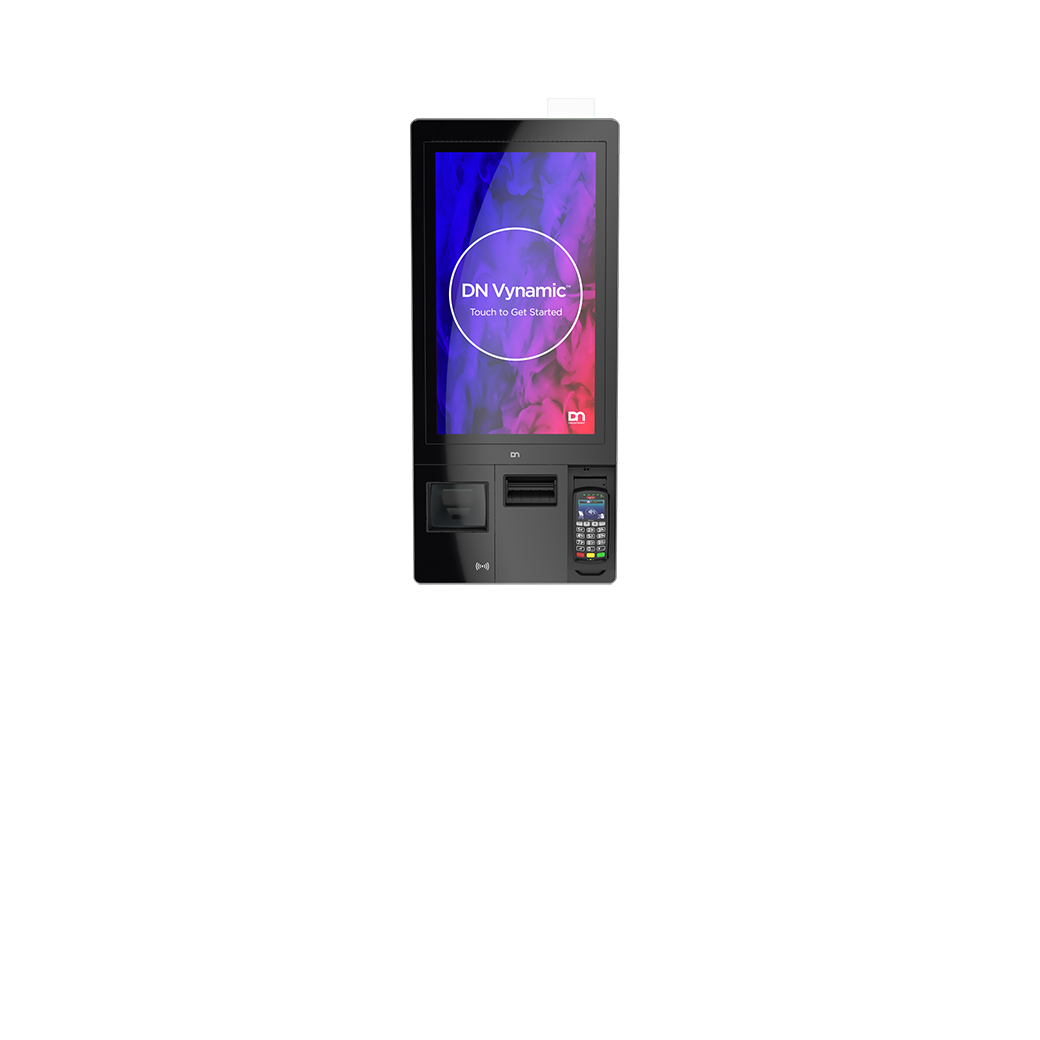

The DN Series EASY eXpress Max is designed to entice, with a 27" or 32" interactive touchscreen to attract and connect with your customers. Easily add new journeys on a wall or countertop.

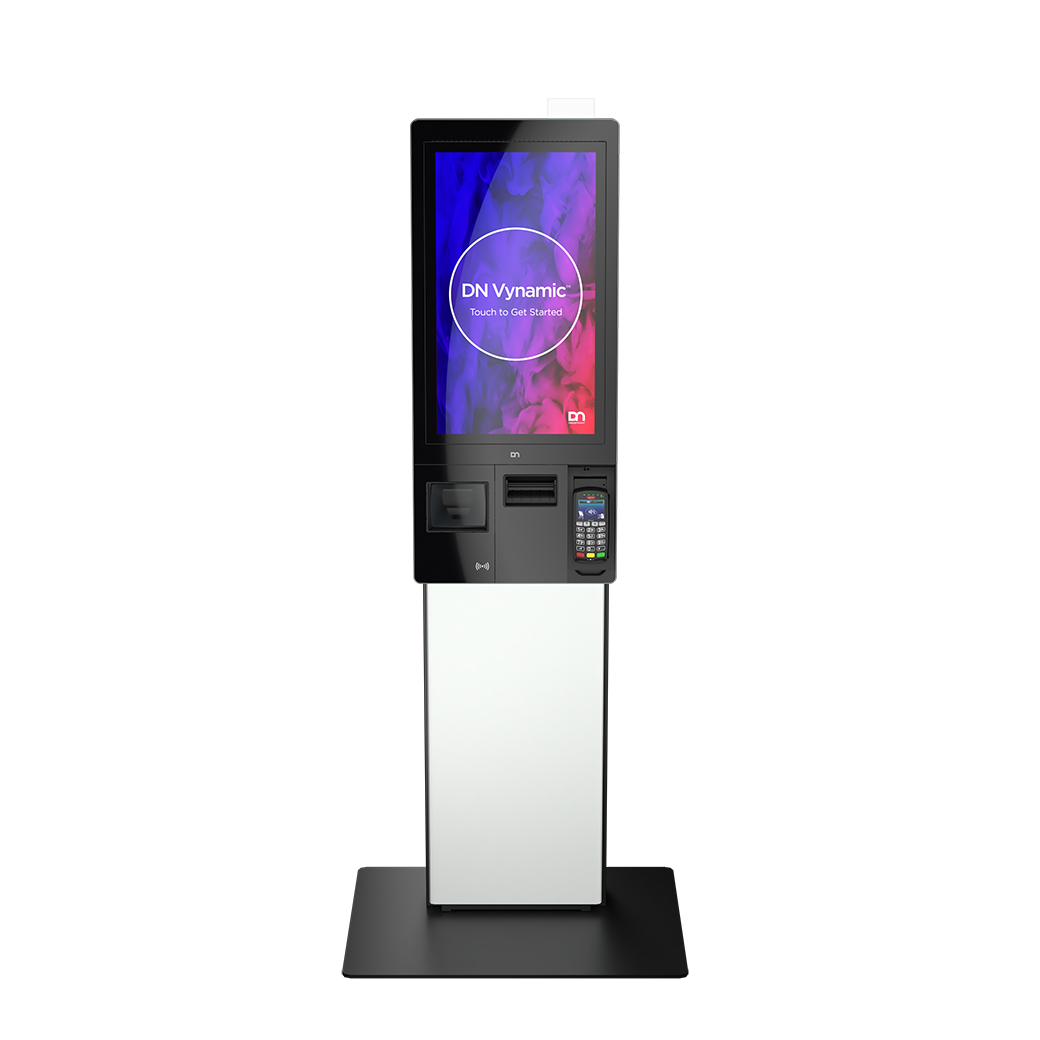

The DN Series EASY eXpress Max is designed to entice, with a 27" or 32" interactive touchscreen to attract and connect with your customers. Add anywhere, in-store, on a customizable pedestal.

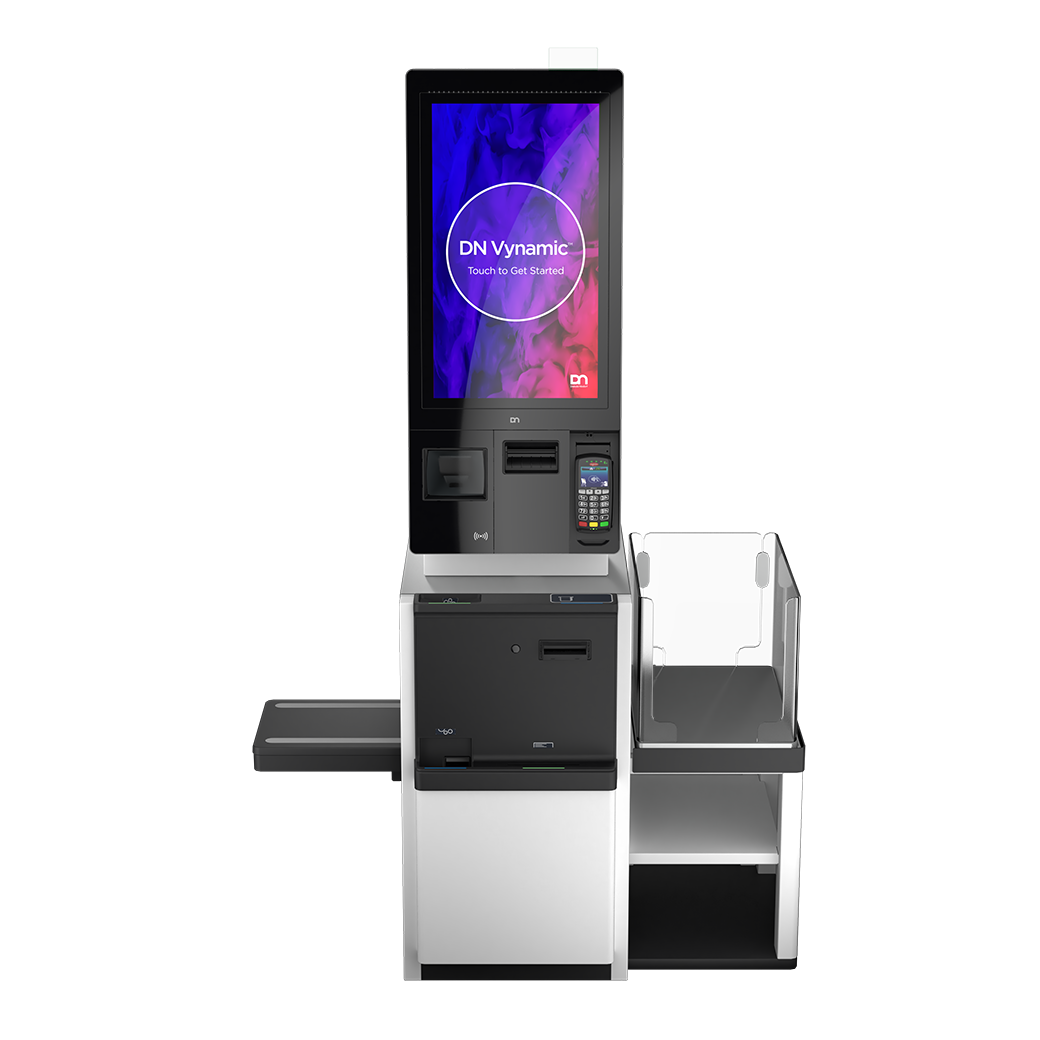

The DN Series EASY eXpress Max is designed to entice, with a 27" or 32" interactive touchscreen to attract and connect with your customers. Leverage security scale and cash rack options.

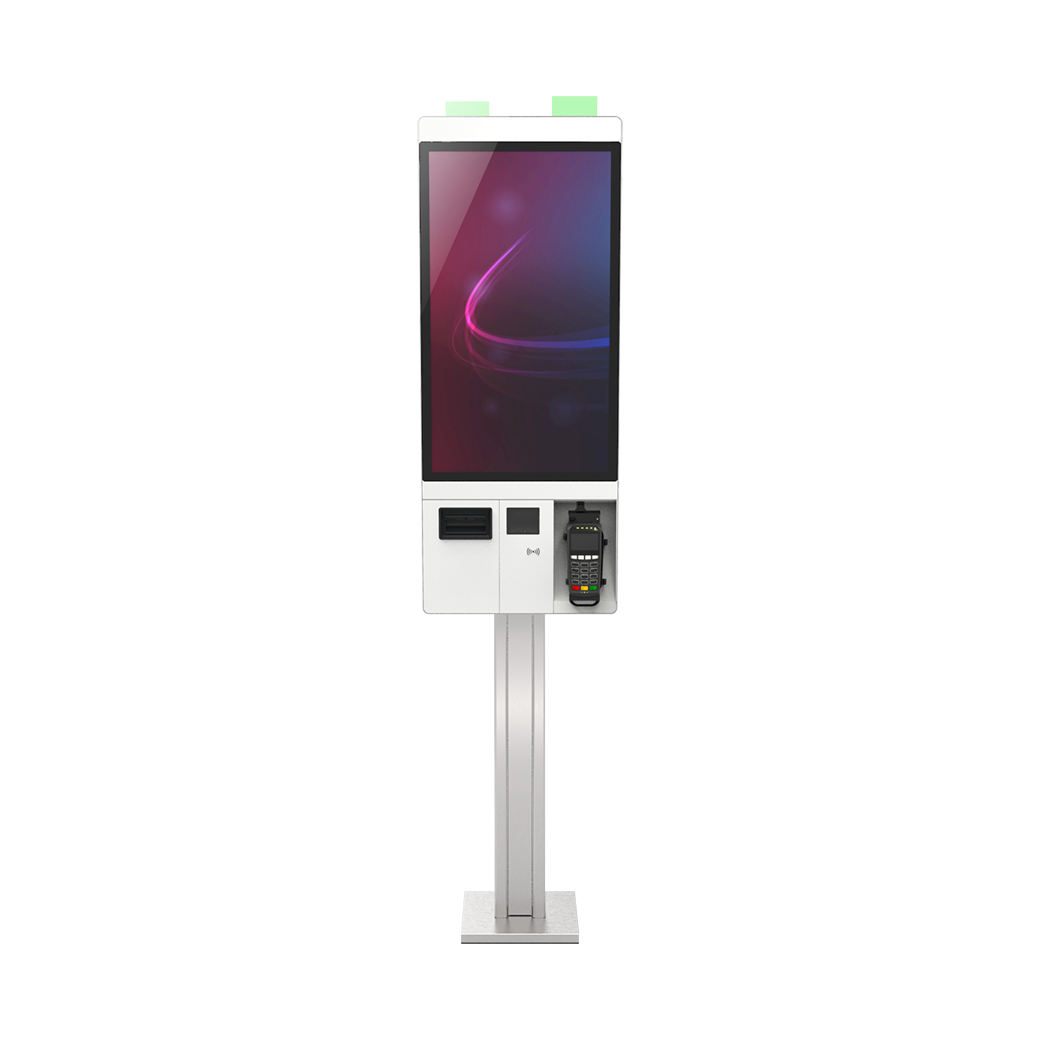

A sleek design with a reliable experience, it’s flexible enough to adapt to change. Using multi-touch technology, the large, 32" screen is ideal for self-service ordering.

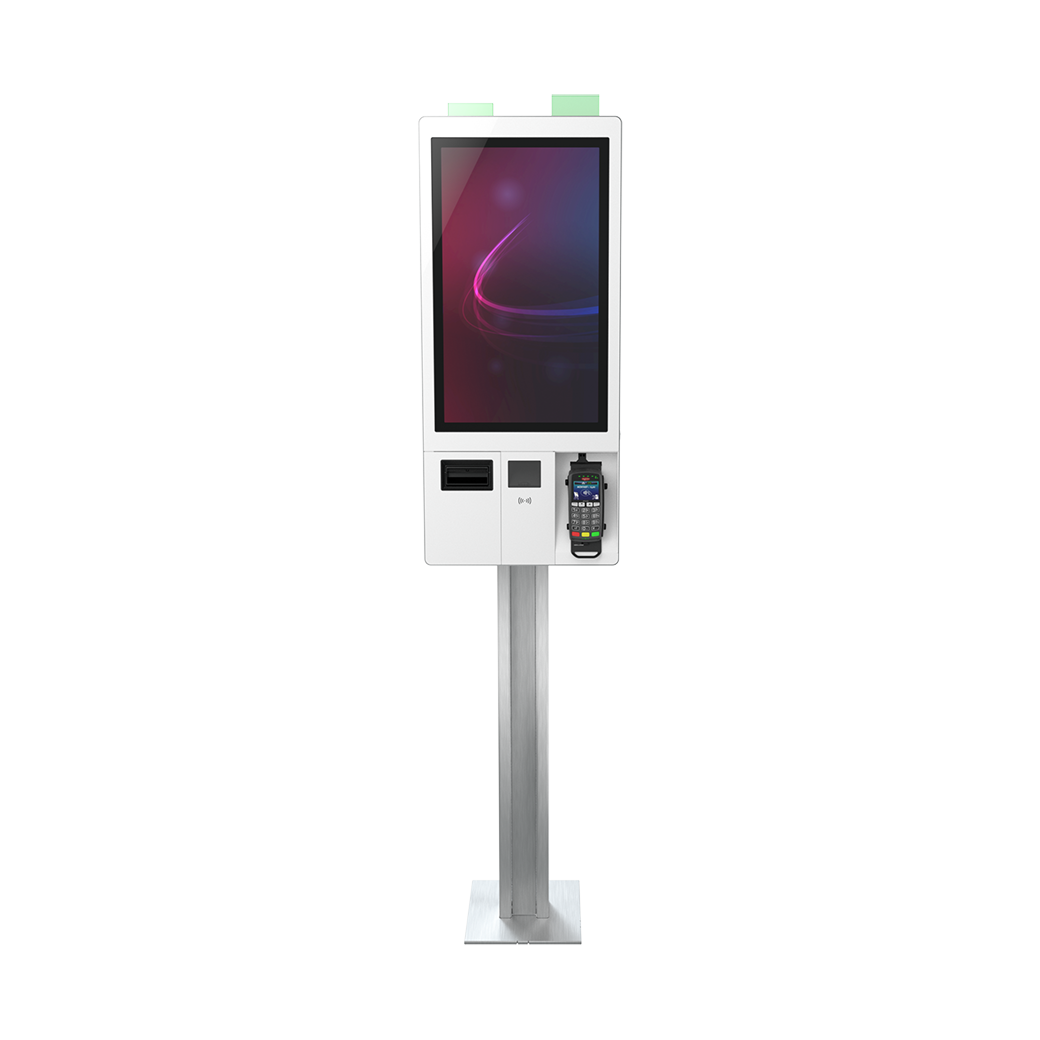

A sleek design with a reliable experience, it’s flexible enough to adapt to change. Using multi-touch technology, on a 27” screen, it’s ideal for self-service ordering.

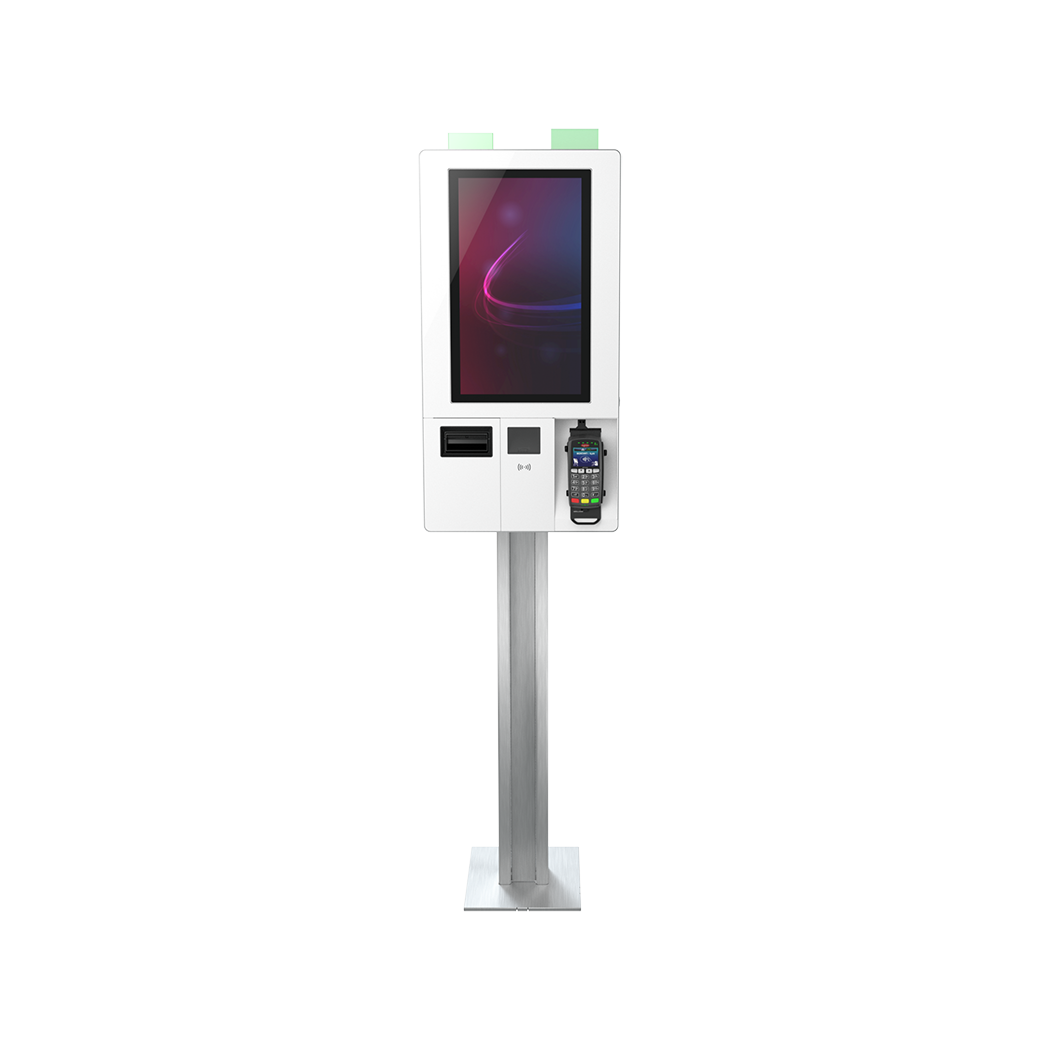

A sleek design with a reliable experience, it’s flexible enough to adapt to change. Using multi-touch technology, on a 22" screen, it’s ideal for self-service ordering.
System Components
Software
Services Options
Wall Mounted
Height: 997 mm (39.3 inches)
Width: 441 mm (17.4 inches)
Depth: 167 mm (6.6 inches)
Weight
Dependent on configuration
Height: 1,810 mm (71.3 inches)
Width: 824 mm (32.4 inches)
Depth: 585 mm (23 inches)
Height: 1,932 mm (76.1 inches)
Width: 1,173 mm (46.2 inches)
Depth: 718 mm (28.3 inches)
32" SINGLE-SIDED (w/o pole) 441 mm/17.36 inches 167 mm/6.57 inches 1,099 mm/43,27 inches approx. 50 kg/110,23 lbs
32" SINGLE-SIDED (with pole) 441 mm/17.36 inches 167 mm/6.57 inches 1,874 mm/73,78 inches approx. 69 kg/152,12 lbs
32" DOUBLE-SIDED (with pole) 441 mm/17.36 inches 236 mm/9.29 inches 1,874 mm/73,78 inches approx. 94 kg/207,23 lbs
27" SINGLE-SIDED (W/O POLE) 441 mm/ 17.36 inches 167 mm/ 6.57 inches 998 mm/ 39.29 inches approx. 41 kg/ 90.39 lbs
27" SINGLE-SIDED (WITH POLE) 441 mm/ 17.36 inches 167 mm/ 6.57 inches 1,848 mm/ 72.76 inches approx. 57 kg/ 125.66 lbs
27" DOUBLE-SIDED (WITH POLE) 441 mm/ 17.36 inches 236 mm/ 9.29 inches 1,848 mm/ 72.76 inches approx. 87 kg/ 191.80 lbs
22" SINGLE-SIDED (W/O POLE) 441 mm/ 17.36 inches 167 mm/ 6.57 inches 855 mm/ 33.66 inches approx. 36 kg/ 79.37 lbs
22"SINGLE-SIDED (WITH POLE) 441 mm/ 17.36 inches 167 mm/ 6.57 inches 1,705 mm/ 67.13 inches approx. 52 kg/ 114.64 lbs
22" DOUBLE-SIDED (WITH POLE) 441 mm/ 17.36 inches 236 mm/ 9.29 inches 1,705 mm/ 67.13 inches approx. 76 kg/ 167.55 lbs
| K-two | EASY eXpress Max | EASY eXpress Max - Pedestal | EASY eXpress Max - Cash | |
|---|---|---|---|---|
 |
 |
 |
 |
|
| Installation variants | Single- or double-sided Wall-mounted Pedestal-mounted |
Wall mounted Desk mounted |
Pedestal mounted | Mounted on cash rack |
| Screen format | 22" (format 16:9, portrait) 27" (format 16:9, portrait) 32" (format 16:9, portrait) |
27" or 32" (format 16:9) LCD TFT projective-capacitive touch screen (landscape) | 27" or 32" (format 16:9) LCD TFT projective-capacitive touch screen (landscape) | 27" or 32" (format 16:9) LCD TFT projective-capacitive touch screen (landscape) |
| Payment functionalities | Compatible with industry-standard payment terminals including signature pad, contactless and NFC authentication | Compatible with industry-standard payment terminals including signature pad, contactless and NFC authentication. | Compatible with industry-standard payment terminals including signature pad, contactless and NFC authentication. | Compatible with industry-standard payment terminals including signature pad, contactless and NFC authentication. Cash rack can be added underneath |
| System unit | BEETLE platform ACO kiosk box | BEETLE CPU Platform | BEETLE CPU Platform | BEETLE CPU Platform |
| Product cards | K-two Product Card | DN_Product-Card_EASY-eXpress-Max | DN_Product-Card_EASY-eXpress-Max | DN_Product-Card_EASY-eXpress-Max Cash Rack |
