EL75

EL75

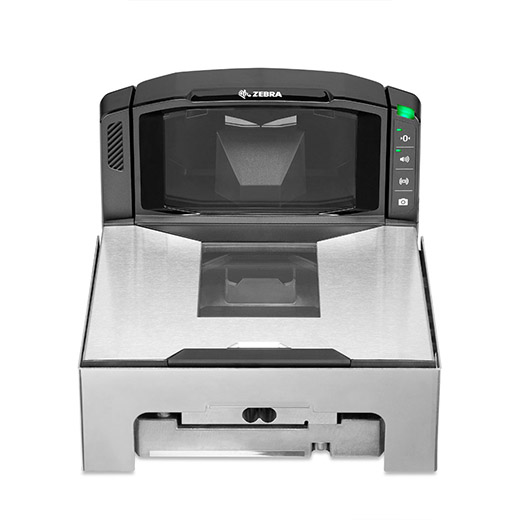

The High-Performance 2D Full-Image Bioptic Scanner EL75 is designed for use in a broad range of settings, including food retail, self-service and wholesale trade. The EL75 offers a multitude of functions and sets new standards of scanning performance and simplicity of operation. The use of the EL 75 fosters rapid throughput and optimizes not only your cashiers’ productivity, but also your customers’ shopping experiences. Equipped with Digimarc® watermarking technology, the EL 75 features an intelligent illumination system that is activated only when an item is in the scan area of the bioptic scanner, which significantly reduces power consumption.

Features & Benefits

Specifications

Additional Information

Product Card

Reference Manuals, Firmware and Drivers

Features & Benefits

HIGH-PERFORMANCE 2D SCANNER AT A GLANCE

  • Suitable for use in self-service, food retail store and wholesale
  • Recognition of linear 1D, 2D and GS1 DataBar™ and
    Digimarc® bar codes
  • Omnidirectional bar code recognition from smartphone
  • Intelligent illumination system, controlled by item detection
  • Functional design
  • Optional integration of a checkout scale
  • Excellent scanning performance
  • USB port for service and software administration
  • Optional 2D Customer Side Scanner (CSS)
  • Easy integration into existing checkout installation
  • Multiple interface
  • Low power consumption
  • Supported by the powered interface on the BEETLE system
  • “Plug & Play” compatibility with Diebold Nixdorf ProBase POS

Specifications

SYSTEM VERSIONS

High-Performance 2D Full-Image Bioptic Scanner, multi-interface

  • MP7000 sapphire, short length (EL-7501)
  • MP7000 sapphire, medium length, scale adaptive prepared (EL-7502L)
  • MP7000 non-sapphire, medium length, scale adaptive prepared (EL-7502L_N)

Additional interface cable alternatives

  • Straight RS232 for usage with external power adapter 5.0 m (EL-MOT-RS2)
  • Straight PoweredUSB 12V 5.0 m (EL-MOT-US3)

Power brick / alternative power line cord

  • External power brick 12V (EL-MOT-PS-MP7)
  • Power line cord EU/ UK/ CH/ USA (KB-3037/KB-3039/KB-3038/KB-3030)

Optional Customer Side Scanner (CSS)

  • Integrated 2D Scanner for bar code recognition from smartphones (EL-75-CSS)

Optional accessories

  • Levelling screws (4pcs.) for higher adjustment in check stand (EL-75-LEV1)
  • Checkpoint® EAS antenna vertical (EL-75-EAS-V)
  • Checkpoint® EAS antenna horizontal (EL-75-EAS-H)
  • Checkpoint® EAS interlock cable (EL-68-EAS)

INTERFACES

  • RS232
  • USB

POWER SUPPLY

RS232

  • Via power brick 12V and country specific power line cord
    (EL-MOT-PS-MP7 + KB-303x)

USB

  • Via PoweredUSB 12V interface cable
    (EL-MOT-US3)
  • Power consumption
    • 5.5W (operating)
    • 3.0W (sleep)

DIMENSIONS (H x W x D)

  • 230 x 292 x 351 mm (short)
    (9.06 x 11.5 x 13.82 inches)
  • 230 x 292 x 399 mm (medium)
    (9.06 x 11.5 x 15.71 inches)

DIMENSIONS WHEN INSTALLED

  • Above checkout desk: 128 mm (5.04 inches)
  • Below check stand: 102 mm (4.02 inches)

WEIGHT

  • 5.5 kg (short)
  • 5.7 kg (medium)

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
