EL70

EL70

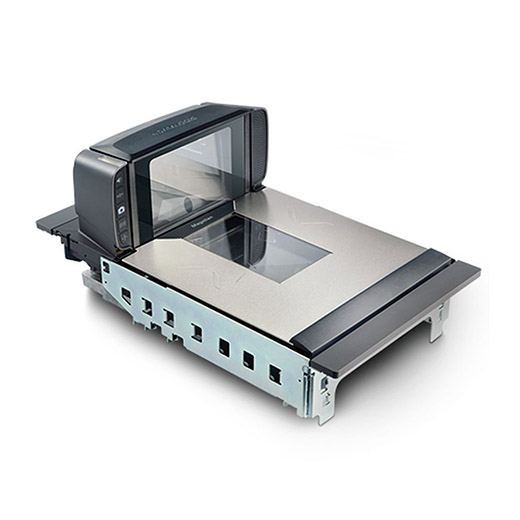

The high-performance 2D multi-plane bioptic EL70 scanner is an imaging technology-based, stationary scanner suitable for use in retail stores with high throughput. The imaging technology provides superior performance in terms of the omnidirectional detection and decoding of linear, 2D and GS1 Databar™ labels. The power of full imaging technology becomes particularly evident with labels that are hard to read, such as low-contrast or damaged barcodes.

The compact, ergonomic design of the EL70 Magellan™ 9400i is identical in its dimensions for the counter cutout to currently available bioptic scanner products on the market. This makes it easy to integrate into existing checkout installations. Its large scanning window and resulting scan area is comparable with bioptic scanners.

The EL70 opens new application possibilities, because it offers 1D and 2D bar code recognition from mobile devices.

The EL70 Magellan™ 9400i can be optionally-equipped with a 2D customer scanner. This means that customers can scan coupons and loyalty cards on their own.

A checkout scale can be optionally installed below the horizontal scan window. When the scale is used in conjunction with optional ScaleSentry™ technology, the system checks on the two main sides of the top platter using an invisible infrared beam to determine if the weighed article is positioned correctly.

The optional Digimarc® watermark recognition is only available for the EL70 Magellan™ 9400i. Compared to the EL69 Magellan™ 9300i, theEL70 Magellan™ 9400i scanner device contains an additional third processor for future feature enhancement and options.

Additional Information

Diebold EL70 Stationary Scanner

Features & Benefits

The High-Performance 2D Multi-Plane Bioptic Scanner EL70 Magellan™ 9400i based on image technology is a stationary scanner for retail stores with a high throughput..

The EL69 is characterized by the following features:

  • Suitable for use in self-service, retail stores and wholesale
  • Recognition of all linear and 2D and GS1 DataBar™ barcodes
  • Omni-directional barcode recognition also from smartphone displays
  • Functional design
  • Optional integration of a checkout scale
  • Top Platter scan window with Datalogic Clear™ Glass
  • Integrated EAS-Support for Checkpoint/Nedap
  • User-Friendly
  • Omni-directional barcode recognition also from smartphone displays
  • USB-Port and  MicroSD card reader for service and software administration
  • Image Capture Modus
  • Optional ScaleSentry™ Technology
  • Optional Digimarc® watermark recognition
  • Easy integration into existing checkout installation
  • Optional 2D Customer Service Scanner (CSS)
  • Plug & Play compatibility ProBase UPOS

Specifications

System versions

High-Performance 2D Multi-Plane Image Bioptic Scanner, multi-interface

  • Magellan 9400i DatalogicClear™ Glass, medium length, with Checkpoint EAS, scale prepared, without ScaleSentry™ (EL-7012)
  • Magellan 9400i DatalogicClear™ Glass, medium length, with Checkpoint EAS, scale prepared, with ScaleSentry™ (EL-7032)

Additional interface cable alternatives

  • Straight RS232 for usage with external power brick 4,50 m (EL-DLS-RS45)
  • Straight PoweredUSB 12V 4.50 m (EL-DLS-US45)

Power brick / alternative power line cord

  • External power brick 12V (EL-5455POW-EXT)
  • Power line cord EU, black (KB-3037)
  • Power line cord UK, black (KB-3039)
  • Power line cord CH, black (KB-3038)
  • Power line cord USA, black (KB-3030)

Optional 2D customer scanner (Customer Service Scanner)

  • 2D scanner for barcode recognition Smartphone OmniMount
    (EL-6970-MCSS)

Optional accessories

  • EAS interlock cable for Magellan 9300i/9400i (EL-6970-EAS)

Interfaces

  • RS232
  • USB

Power supply

  • RS232
    -Via power brick 12V and country specific power line cord
    (EL-5455POW-EXT + KB-303x)
  • USB
    -Via PoweredUSB 12V interface cable (EL- DLS-US45)
  • Power consumption
    -100 - 240V AC / 50 - 60 Hz
    -12 Watt (Operating)
    -11 Watt (Sleep)

Environmental conditions

  • Operating temperature:
    -10 to +40 °C
  • Storage temperature:
    -40 to +70 °C
  • Relative humidity
    -5 to 95% rel. (without condensation)

Reading characteristics

  • Illumination:  Several LEDs
  • Ambient light:
    -Indoors: <4844 Lux/450 footcandle
    -Outdoors: <86114 Lux/8000 footcandle
  • Image Recognition
    -Graphic format: BMP, JPG
  • Sides Read/Scan Zone
    -All six sides (5 sides plus 2D Customer Service Scanner)

Barcode types

Linear 1D Barcodes

  • UPC A / UPC E
  • EAN 8 / EAN 13
  • GS1 Databar™ Codes
  • GS1 Databar™ Stacked
  • GS1 Databar™ Expanded Stacked
  • GS1 Databar™ Stacked Omnidirectional
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Code 128 / GS1-128
  • Code 39
  • Code 93
  • Codabar

2D Barcodes

  • PDF417
  • MicroPDF417
  • Datamatrix
  • QR Code
  • Micro QR Code
  • Aztec Code

Approvals

  • CE
  • UL (US & Canada)
  • KCC / Korea
  • VCCI / Japan
  • China ROHS
  • EU ROHS

Dimensions (W x H x D in mm)

  • 292 x 232 x 399

Dimensions when installed

  • Above checkout desk: 130 mm
  • Below checkout stand: 102 mm

Weight

  • 6.1 kg

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
