SYSTEM VERSIONS

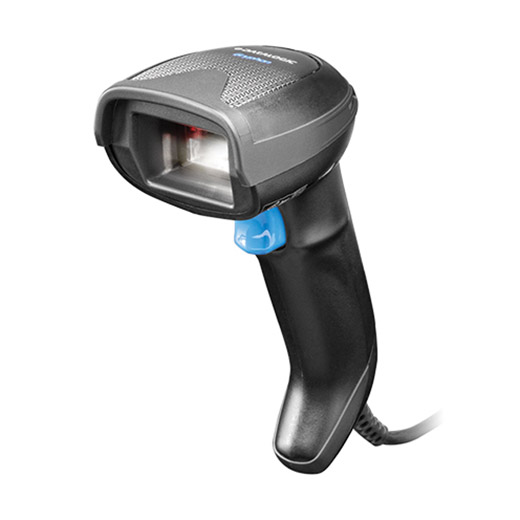

• 2D handheld scanner, multi-interface
• GD4590 Image Scanner SR black
• GD4590 Image Scanner SR white
• GD4590 Image Scanner SR with permanent base black
• GD4590 Image Scanner SR with permanent base white

Additional interface cable alternatives

• Straight RS232 POT 3.00 m
• Straight USB Typ A black 2.00 mStraight USB Typ A white 2.00 m
• Straight PoweredUSB black 2.00 m
• Straight PoweredUSB white 2.00 m
• Coiled USB Typ A black 2.40 m
• Coiled RS232 POT 3.00 m
• Coiled RS232 POT 3.60

Holder (optional)

• Holder grey
• Holder black
• Desk/wall mount white
• Desk/wall mount blackBasis stand white
• Basis stand blackm

POWER SUPPLY

• RS232 / USB via powered Interface COM* /USB
• Power consumption: 300 mA (Operating)/90 mA (Standby/Idle)

ENVIRONMENTAL CONDITIONS

• Operating temperature: 0 to +50 ° C
• Storage temperature: -40 to +70 ° C
• Humidity: 0 bis 95% rel. (without condensation)
• Protection class: IP52

READING CHARACTERISTICS

• Resolution: 4 mils
• Motion tolerance: up to 88.9 cm/sec,
  35 IPS
• Image capture:
  • Graphic format: BMP, JPEG, TIFF
  • Greyscale: 256
• Light source:
  • Aiming: 650 nm VLD
  • Illumination: white LED’s
• Ambient light: 0 - 100.000 Lux / 9290
  foot candle
• Reading angle: Roll (Tilt): 0 - 360°,
  Pitch: ±65°, Skew(Yaw): ±65°

BARCODE TYPES

• Linear1D-Barcodes: UPC A/UPC E,
  EAN 8/EAN 13,GS1 DatabarTM Codes,
  GS1 Databar Stacked, GS1 Databar
  Expanded Stacked, GS1 Databar Stacked
  Omnidirectional, Interleaved 2of5,
  Standard 2of5, Code128/GS1-128,
  Code 39, Code 93, Code 32, Codabar
• 2D-Barcodes: PDF417, MicroPDF417,
  Datamatrix, MaxiCode, QR Code,
  MicroQR, Aztec Code

APPROVALS

• CE, KCC/Korea, VCCI/Japan, BSMI/
  Taiwan, C-Tick/Australia, CCC/China,
  NOM NYCE/Mexico, EAC Zollunion
  Russland/Belarus/Kasachstan, UL USA,
  CSA Canada, CRS India, China ROHS,
  EU ROHS
