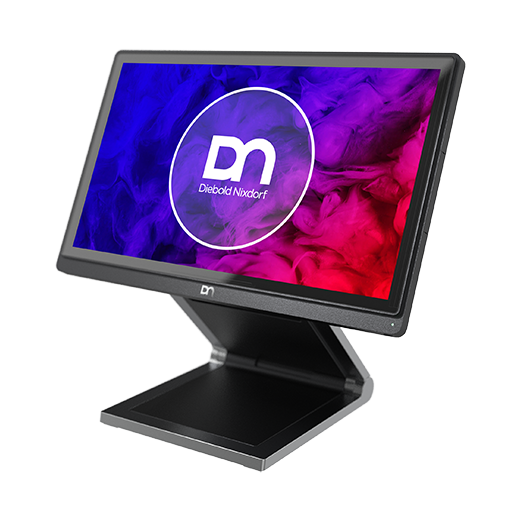

DN Series™ D2156 Display

DN Series™ D2156 Display

At 15.6” with a 16:9 wide-screen ratio, this is the ideal choice as a space-saving display for showing text and multimedia content.

Additional Information

D2156

Features & Benefits

Applications

Operator display

Information and kiosk terminal
Outstanding Adaptability and Maximum Reliability

VESA-compatible mount enables flexible use of the D2156 as a display solution for both desktop-based systems and wall- or pole-mounted applications.

Robust housing designed to withstand the rough conditions found in the POS environment.

Integration of long-lasting, dependable and industry standard electronic components as the basis for outstanding reliability, long life and availability.
Environmental Commitment

The D display family protects the environment, reduce operating costs and optimize the total cost of ownership (TCO).

Offer industrial quality for long-term operation.

USB Type C interface is a multifunctional single- cable data, video signal and power supply solution which uses less cables.

LED-backlit display panel meets current energy-saving requirements.

Legacy installations PanelLink2™ connection can be used


Specifications

Screen Diagonal: 15.6 inches (16:9) format

Resolution: 1,920 x 1,080

Number Of Colors: up to 16 million

Brightness Type: 350 cd/m²

Contrast: 1000:1

Format: 16:9

Reading Angle:
85°/85° (horizontal)
85°/85° (vertical)

Active Screen Area:
344 mm (H) / 2156: 344
193 mm (V) / 2156: 193
Ports:
DVI-D/PanelLink2™
USB-C
USB-A
Power jack

Mounting Variations:
Stand
Adapter for column mounting (VESA 100)
Dual display adapter for second display

Options:
Projected capacitive (10-point PC touch)

Power Consumption:
11 watts (typical)
0.5 watts (standby PCT)
0.3 watts (soft off)

Operating Temperature: 5° C to +40° C
Storage Temperature: -20° C to +60° C

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
