DN Series™ D2080 Display

DN Series™ D2080 Display

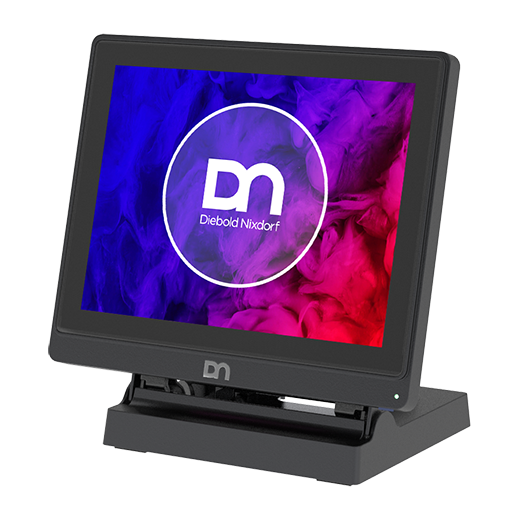

The D2080 with an 8” screen format works especially well as a space-saving display for presenting text and multimedia content.

Additional Information

D2080

Features & Benefits

Applications

Operator display

Information and kiosk terminal
Outstanding Adaptability and Maximum Reliability

Small footprint suited for nearly all applications where minimal space requirements come into play.

VESA-compatible mount enables flexible use of the D2080.

Robust housing designed to withstand the rough conditions found in the POS environment.

Integration of long-lasting, dependable and industry standard electronic components as the basis for outstanding reliability, long life, and availability.
Environmental Commitment

The D display family protects the environment, reduce operating costs and optimize the total cost of ownership (TCO).

Offer industrial quality for long-term operation.

USB Type C interface is a multifunctional single- cable data, video signal and power supply solution which uses less cables.

LED-backlit display panel meets current energy-saving requirements.

Legacy installations PanelLink2™ connection can be used.

Specifications

Screen Diagonal: 8 inches

Resolution: 800 x 600

Number Of Colors: up to 16 million

Brightness Type: 210 cd/m²

Contrast: 700:1

Format: 4:3

Reading Angle:
70°/70° (horizontal)
60°/85° (vertical)

Active Screen Area:
162 mm (H)
121 mm (V)
Ports:
DVI-D/PanelLink2™
USB-C
USB-A (only touch)
Power jack

Mounting Variations:
Stand
Adapter for column mounting (VESA 75)
Dual display adapter

Options:
Non touch
Projected capacitive(10-point multitouch)

Power Consumption:
4 watts (typical)
0.5 watts (standby PCT); 0.4 watts(standby non-touch)
0.3 watts (soft off)

Operating Temperature: 5° C to +40° C
Storage Temperature: -10° C to +60° C

The availability of the Systems and certain features/functions displayed may vary by geography and are subject to change.
